What Is a Plenum-Rated Cable?

If you've ever been asked to buy or spec a "plenum-rated cable" but had no idea what that meant, don’t fret – you're not alone. This standard commercial building material is often overlooked until you realize its importance in meeting building codes and ensuring fire safety.

Let's break down what a plenum-rated cable is, when it's required, and how to tell if yours  qualifies.

What Does "Plenum-Rated Cable" Mean?

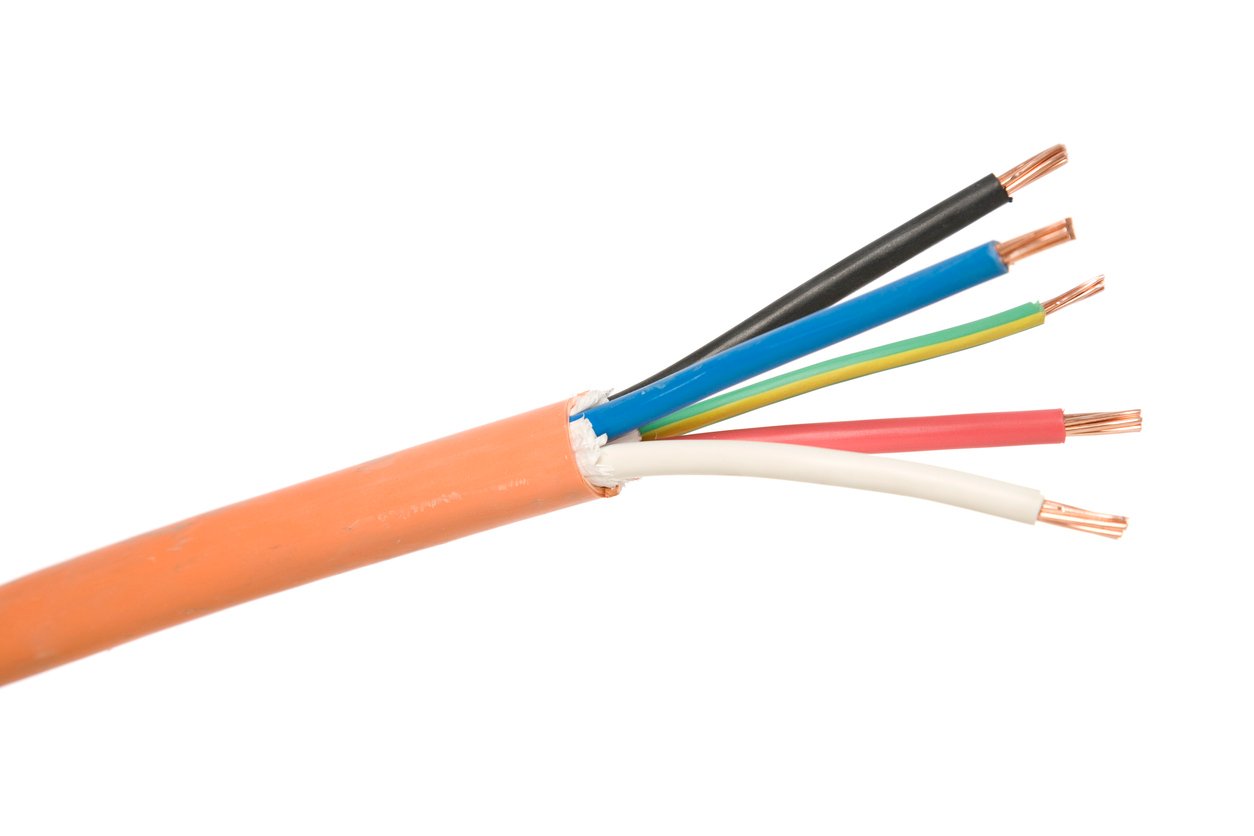

A plenum-rated cable is a type of wiring jacket designed to reduce the amount of smoke and toxic fumes emitted during a fire. The term "plenum" refers to a specific type of air-handling space within buildings, usually the area above ceiling tiles where HVAC systems circulate air. Since this space allows air to flow freely, a fire can spread rapidly if standard (non-fire-rated) cables are installed.

To limit potential risk, plenum-rated cables are required to meet stringent fire resistance standards, such as UL 910 (also recognized by NFPA 262), which limits flame spread and smoke production. These cables are often jacketed with low-smoke PVC or fluoropolymers.

Common Code Classifications

Plenum-rated cables fall under different NEC (National Electrical Code) categories depending on their application:

• NEC 725: Low-voltage cables
• NEC 760: Fire alarm cables
• NEC 800: Communications & data cables



What Are Plenum-Rated Cables Used For?

A plenum-rated cable is basically used in any building that you can think of. But to break it down further,  plenum-rated cables are commonly used in:

• Commercial buildings
• Hospitals & schools
• Retail stores & office spaces
• Data centers & server rooms

Anywhere cables are run through plenum air spaces, such as above dropped ceilings or below raised floors – plenum-rated wiring is likely required by building code.

Common types of plenum-rated cables:

• Ethernet (e.g., Cat6 plenum cable)
• Fire alarm wiring
• Audio & visual and speaker cable
• Control & signal cables



When Is Plenum-Rated Cable Required?

You'll need plenum-rated cable when cabling is installed in plenum spaces – unobstructed air pathways typically found in HVAC systems, ceilings, or floors. These spaces can carry fire and smoke rapidly, so they require materials that meet stricter fire safety codes.

Your building engineer or installer should confirm whether a cable run is classified as a plenum air-handling space. But in general, if air flows freely (not through ductwork), plenum-rated cable is likely required.

On the other hand, non-plenum (or riser-rated) cables are typically fine for vertical runs between floors where airflow is contained.

How to Tell If a Cable Is Plenum-Rated

Plenum-rated cables are labeled directly on the cable jacket, so if you're holding a reel or length of cable, look for markings like:

• CMP: Communications Plenum
• FPLP: Fire Alarm Plenum
• CL2P or CL3P: Class 2 or Class 3 Plenum

These designations confirm that the cable meets UL 910 standards for low smoke and flame spread. If it doesn't say "plenum," you should assume it isn't one.

Tip: If the cable jacket doesn't explicitly say "plenum" or include the CMP rating, don't use it in a plenum space.

Why Use Plenum-Rated Cable?

Here are a few reasons why plenum-rated cable is the go-to choice, even beyond code requirements:

1. Fire & Smoke Safety

Plenum jackets are designed to limit the spread of toxic smoke and fire, which is crucial for reducing risk for both people and property in public buildings.

2. Regulatory Compliance

Most local and national building codes require plenum-rated wiring in air-handling spaces. Using non-compliant materials can lead to costly remediation.

3. Minimal Cost Difference

Despite its added safety features, plenum cable now costs only slightly more than standard PVC-jacketed cable, often just a few dollars more per 1,000 feet.

4. Versatility

Plenum-rated options are available for virtually all types of data, control, and fire alarm applications.

Plenum vs. Non-Plenum Cable: What’s the Difference?

To better understand  the difference between plenum-rated versus non-plenum cable, take a look at a few features to distinguish between the two.

When to Use Plenum-Rated Cable Over Non-Plenum Cable

Whenever you're unsure about whether a space qualifies as a plenum, defaulting to plenum-rated cable is often the safest and most compliant choice, especially since the cost difference is minimal.

Use plenum-rated cable when:

• Running cable above ceiling tiles
• Installing in return air spaces without ductwork
• Working on commercial construction or renovations
• Meeting insurance or AHJ (Authority Having Jurisdiction) requirements



Choosing the Right Cable Matters

Understanding what a plenum-rated cable is and where to use it can make the difference between a code-compliant, fire-safe installation and a significant (plus expensive) problem.

If you're unsure which cable type is right for your application, our experts are here to help you make informed, compliant choices every time.
